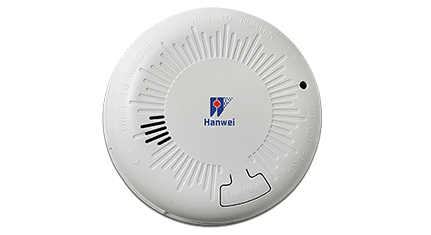

YB030 Independent Smoke Detector

YB030 Independent Smoke Detector
Dual optical path design to avoid false alarm
Alarm mode: Audible&visual alarm
Alarm sound: ≥85dB@3m
Battery life: ≥ 5 years
Get a Quote Leave Message Download
Share With:

Overview

Brief Introduction:

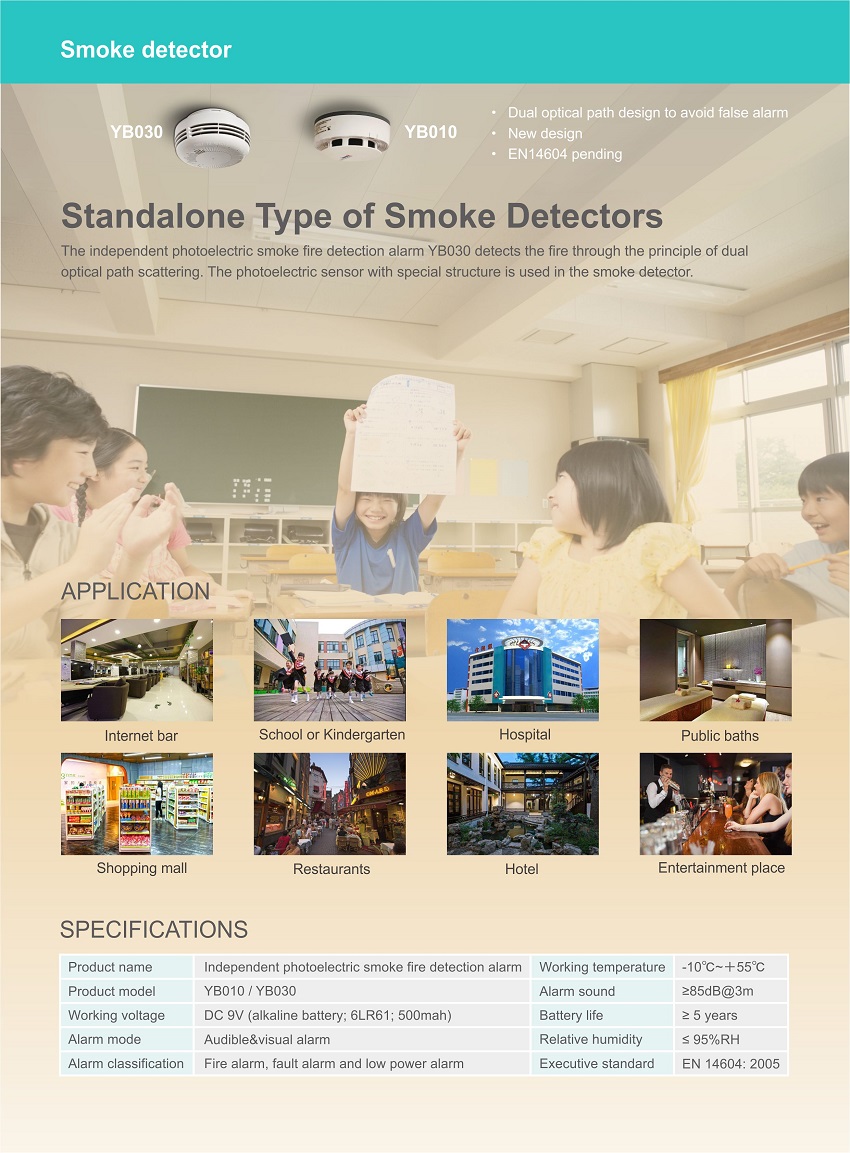

The independent photoelectric smoke fire detection alarm YB030 detects the fire through the principle of dual optical path scattering. The photoelectric sensor with special structure is used in the smoke detector.

Features:

Dual optical path design to avoid false alarm

New design

EN14604 pending

Application:

Internet bar, School or Kindergarten, Hospital, Public baths, Shopping mall, Restaurants, Hotel, Entertainment place

Technical Data

Product name: Independent photoelectric smoke fire detection alarm
Product model: JTY-GF-YB030
Working voltage: DC 9V (alkaline battery; 6LR61; 500mah)
Alarm mode: Audible&visual alarm
Alarm sound: ≥85dB@3m
Battery life: ≥ 5 years
Working temperature: -10℃~＋55℃
Relative humidity: ≤95%RH
Alarm classification: Fire alarm, fault alarm and low power alarm
Executive standard: EN 14604：2005
Product size: Φ90mm×H56mm
